Autel MaxiSYS IA1000AST ADAS Calibration System with LDW Targets Save Now

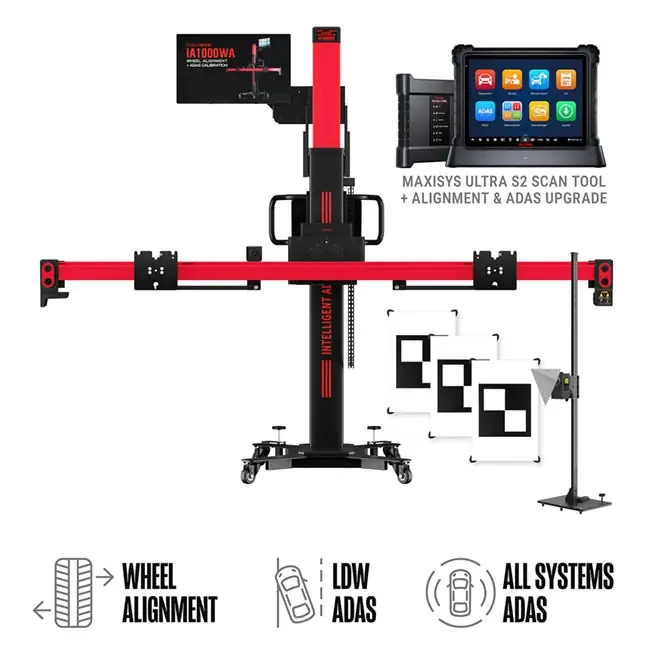

Autel MaxiSYS IA1000AST ADAS Calibration System with LDW Targets

Part Number: IA1000AST

The Autel IA1000AST is a complete ADAS calibration system designed to support LDW and multiple advanced driver assistance features. This package includes the robotic IA1000 calibration frame, Ultra S2 diagnostic tablet, IA1000 activation card, and LDW physical targets. Ideal for shops focusing on front-facing camera systems, the IA1000AST automates target alignment and delivers OEM-compliant procedures backed by comprehensive diagnostics and reporting.

Key Features

Robotic 5-axis calibration frame ensures rapid, repeatable accuracy

Includes physical LDW targets for front-facing camera calibration

Ultra S2 diagnostic tablet with Topology 3.0 and deep system access

Pre- and post-scan reports with image validation for insurance documentation

Laser-guided target placement for LDW, BSD, ACC, AVM, and NVS systems

OTA updates for software and OEM target files

Included Components

IA1000 Robotic Calibration Frame

Ultra S2 Diagnostic Tablet

IA1000 Activation Card

LDW Physical Targets

Accessory Kit (clamps, holders, setup tools)

Warranty Information

System includes a 1-year limited warranty covering the calibration frame, tablet, and activation hardware. LDW target coverage follows Autel’s standard accessory policy.

Specifications

Model: AUTEL-CSC1000

Power Supply: 100–264 V, 50/60 Hz

Rated Power: 360 W

Calibration Frame Height: 65.75–109.06 in.

Crossbar Length: 106.30 in. unfolded

Crossbar Height Range: 11.18–98.43 in.

Camera Resolution: 3072 × 2048

Operating Temperature: 14–122 °F

Storage Temperature: -4–140 °F

Compatible Tablet: MaxiSYS Ultra Tablet Series
