Fresh Stock FOUNTAIN INDUSTRIES SprayMaster SM9600-231 85-Gallon Spray Cabinet PN 65053-01

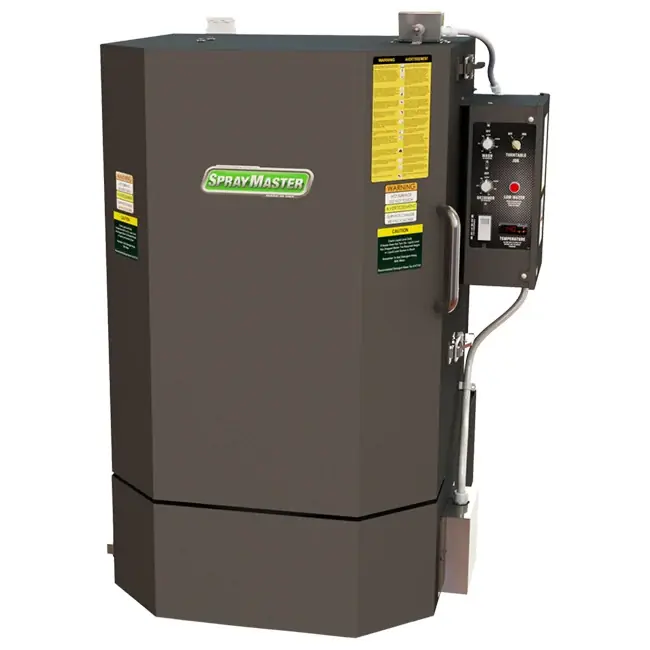

FOUNTAIN INDUSTRIES SprayMaster SM9600-231 85-Gallon Front Loading Spray Wash Cabinet PN 65053-01

Part Number: 65053-01

The Fountain Industries SprayMaster SM9600-231 is a powerful 85-gallon front-loading spray wash cabinet constructed from carbon steel. This industrial-grade washer features a 30 in. friction-driven turntable, 3.0 HP high-volume pump, and dual 4.5 kW heaters (9.0 kW total) for high-performance aqueous cleaning. Its large 1000 lb. load capacity and 40 in. working height accommodate bulky parts with ease. Additional features include a 12 in. disc skimmer with timer, center spray bar, removable tree rack, stainless steel nozzles, and programmable heat/cycle timers. A liquid level sensor protects heater elements, and four casters provide mobility.

Features:

85-gallon spray cabinet with carbon steel construction

30 in. friction-drive turntable with 1000 lb. load capacity

40 in. inside working height for large parts

3.0 HP stainless steel impeller pump

Dual 4.5 kW heaters (9.0 kW total heating capacity)

Adjustable cycle timer (0–60 minutes)

Adjustable heat timer for overnight heating

12 in. disc skimmer with 45-minute timer

Center spray bar folds for small parts

Removable tree rack and stainless steel nozzles

Liquid level sensor prevents heater burnout

Mounted on four casters for portability

Also available in stainless steel as model 9600SS

Specifications

Tank Capacity: 85 gallons

Electrical: 220 VAC / 60 Hz / 1 Phase

Power Consumption: 60 Amps

Meets 0.75 freeboard requirements

Inside Tank Dimensions: 30 in. Diameter Turntable x 40 in. Working Height

Overall Dimensions: 42 in. L x 50 in. W x 68 in. H

Shipping Weight: 960 lbs
