G-Tec TTCF-8 Heated Cooler Transmission Line Flusher 40400038 Special Offer

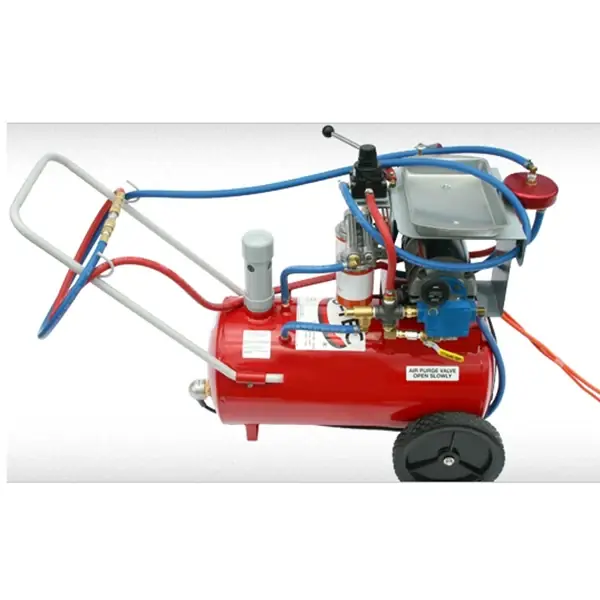

G-Tec by Flow Dynamics TTCF-8 Heated Cooler Transmission Line Flusher 40400038

MODEL : TTCF-8

PART NO: 40400038

Our Heated Cooler Line Flusher cleans out the cooler lines and heat exchanger prior to installing a rebuilt or new transmission; a process which has been proven to minimize the likelihood of repeat repairs. This special tool removes contamination in the cooling system by melting down waxy varnish residue from burnt ATF and by purging the metal particles, clutch materials, and other contaminants from the system. Only by heating the cooling system back to high temperatures will the exchanger expand releasing the debris into the flow of pulsating hot oil.

This model comes with all the features of our previous models with the addition of the one-nut Oberg 64 micron filter, so you can easily show your customers the dirt you cleaned out of their lines. The TTCF-8 also comes complete with nearly adapter we offer allowing you to clean the cooler lines of hundreds of models of vehicles!

Every automatic transmission (A.T.) cooling system, whether it is an air-to-oil cooler or the new puck-style coolers must be cleaned when the transmission is overhauled or replaced in order to minimize repeat repairs – the dreaded comeback. G-TEC’s Heated Cooler Line Flusher is the most effective and economic method for removing contamination and debris from the cooling system.

Specifications

Features

10 gallon all-steel low profile tank powder coated for durability

Auto-controlled 1500 Watt internal tank heater keeps the fluid at the optimum temperature to clean the cooling system

1 inch gauge for monitoring the temperature of the fluid in the flusher’s tank

The low fluid safety (float) switch prevents damage to the heater by cutting power to the heater when the fluid level in the tank drops too low – illuminating a red warning light on the electrical box

Sealed heavy duty on/off switches with green indicator lights

1750 ppm (pulses per minute) pulsating pump with a pressure relief valve and a commercial-grade motor with a 1/2 hp service factor

10 inch semi-pneumatic rubber tires for easy mobility

Two magnetic non-bypass spin on absorption filters

Two 8 foot hoses with quick disconnects

1 inch drain plug allows quick and easy cleaning of tank

Motor shield reduces noise and tool tray holds adapters

Two rubber grommets for the hoses to pass through thus preventing damage from vibration

Hydraulic purge valve prolongs the life of the filters and fluid

5 gpm flowmeter shows any system blockages or restrictions

Longer handle for easy mobility

Air injection system for added scrubbing and vent tower

Reverser valve

64 micron Oberg filter with one-nut assembly for easy cleaning

Hour meter to determine how long you have been flushing – useful for determining when to change filters

Comes with the following adapter sets: Domestic, Banjo, Honda, SDA, P1, P2, P3, P4, Honda/Acura Puck (P6), Audi/VW/Nissan (AVWN)

Weight: 120 lbs
