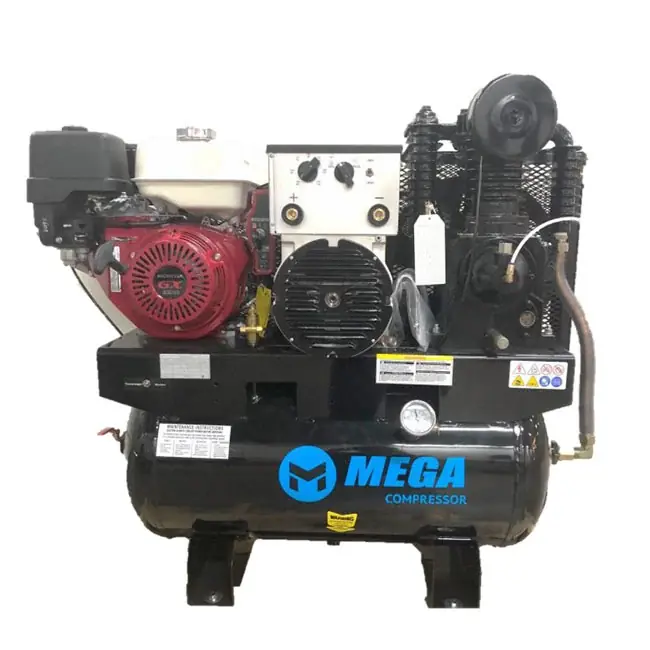

Mega Power MP-13030HWG-250 | 250 Amps 13 Hp Honda Electric Start Welder/Generator/Air Compressor

Model: MP-13030HWG-250

The Megapower MP-13030HWG is a versatile and powerful 3-in-1 machine, functioning as an air compressor, generator, and welder, making it ideal for various industrial and DIY applications. It is powered by a robust Honda GX390 engine, offering 13 horsepower for reliable performance. As an air compressor, it delivers impressive capabilities with 28 CFM displaced and 18.0 CFM at 175 PSI, featuring a splash lubrication system and a 61-ounce pump oil capacity.

Its welding functionality provides a range of 170 to 200 AMP, catering to different welding needs. The unit also serves as a generator with a 5.5 KW output, suitable for a variety of power requirements. The tank capacity stands at 30 gallons, complying with ASME standards, and the overall unit has a substantial shipping weight of 650 pounds. This combination of features ensures that the MP-13030HWG is a valuable tool for both professional and personal use, offering reliability, power, and versatility.

Weld Output Terminals

Welding Amperes and Cable Size Recommendations:

For 100 Amperes:

Up to 100 ft: Use 4 AWG

Up to 150 ft: Use 4 AWG

Up to 200 ft: Use 3 AWG

Up to 250 ft: Use 2 AWG

Up to 300 ft: Use 1 AWG

Up to 350 ft: Use 1/0 AWG

Up to 400 ft: Use 1/0 AWG

For 150 Amperes:

[Similar progression with appropriate AWG sizes]

For 200 Amperes:

[Similar progression with appropriate AWG sizes]

General Guidelines:

If cable overheats, use the next larger size.

Cable size is based on a 4-volt or less drop or a current density of at least 300 circular mils per ampere.

[Metric conversion information]

The weld output terminal chart for the Megapower MP-13030HWG provides a general guideline for selecting weld cable sizes based on the total cable length and welding amperes. It is essential to understand that this chart serves as a basic reference and may not be suitable for every application. In cases where the cable overheats, it is advised to opt for the next larger cable size. Additionally, the selection of weld cable size (AWG) is determined by a combination of factors including a voltage drop of 4 volts or less and a current density of at least 300 circular mils per ampere, with a conversion to mm2 for metric usage. For precise and detailed information, it’s recommended to consult the original document or seek professional guidance

Not Included are these additional accessories

Must have forklift or loading dock At your business address for this to ship to

Specifications

Model: MP-13030HWG, a 3-in-1 Air Compressor, Generator, and Welder.

Engine: Honda GX390 with 13 Horse Power.

Air Compressor Performance:

CFM Displaced: 28 CFM.

CFM Delivered: 18.0 CFM at 175 PSI.

Lubrication: Splash Lubrication system.

Pump Oil Capacity: 61 ounces.

Welder Capacity:

Standard: 170 AMP.

Maximum: 200 AMP.

Generator Output: 5.5 KW.

Tank Capacity: 30 Gallons (ASME certified).

Shipping Weight: 650 pounds.
