Mi-T-M HMT-4004-0MGV – Hot Water Mini Trailer Latest

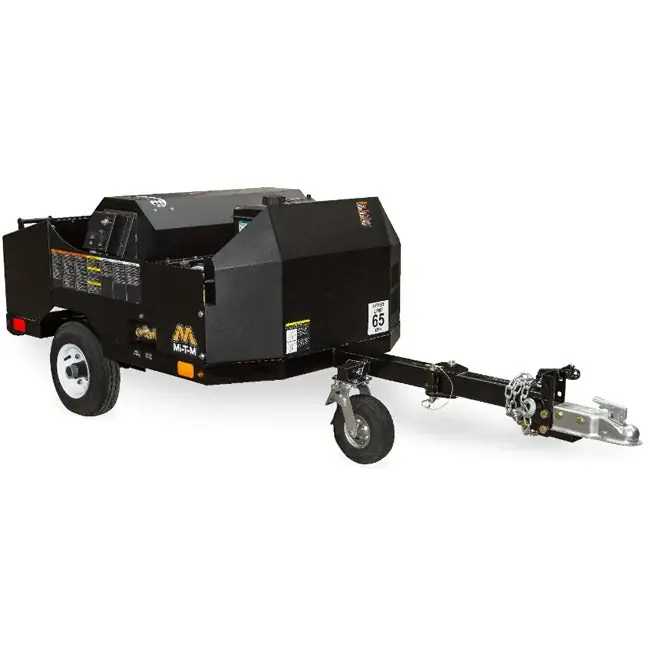

Mi-T-M HMT-4004-0MGV – Hot Water Mini Trailer

MODEL: HMT-4004-0MGV

HMT-4004-0MGV

Easy to tow from one job to the next, this trailer offers the convenience of portable cleaning.

Pump
Adjustable pressure unloader · Forged brass manifold · Thermal relief valve

Engine
Remote engine start and choke · 12V electric start – battery not included

Frame
Reinforced powder coated steel frame · Locking rear storage area – 2.875 cubic feet · Sealed LED trailer lights · 2-inch ball hitch · Caster brake (Use when unhitched) · (2) 4.80-8 8-inch bias ply tires

Components
½-inch schedule 80 pipe-coil with 4-pancake heat exchanger · 12V Beckett burner · No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel) · Engine hour meter · 1,000-lb. axle

Miscellaneous
Temperature rise 140°F/60°C above ambient

Safety Features
Removable safety flag for transportation and guidance when backing up · Recommended maximum speed is 65 mph · DOT approved · 250°F high temperature safety limit switch

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline MODEL:s sold in California are required to have a CARB compliant engine. Consult factory.

Optional Accessoriess (Not Included)

TX-0010 Adjustable Trailer Coupler Hitch – Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket

TX-0020 High Pressure Hose Real – 12-inch hose reel, 100-foot maximum hose length

Specifications

PSI: 4000

GPM: 3.7

Displacement/ Engine: 408cc Vanguard OHV

Pump: General

Engine Fuel Tank Capacity: 1.51 gallon

Burner Fuel Tank Capacity: 10.0 gallon

Burner Fuel Cons.: 2.45 gph

BTU Per Hour: 343,000

Net Weight: 1000.00 lbs.

Shipping Weight: 1000.00 lbs.

Length: 99.00 in.

Width: 43.50 in.

Height: 36.00 in.
