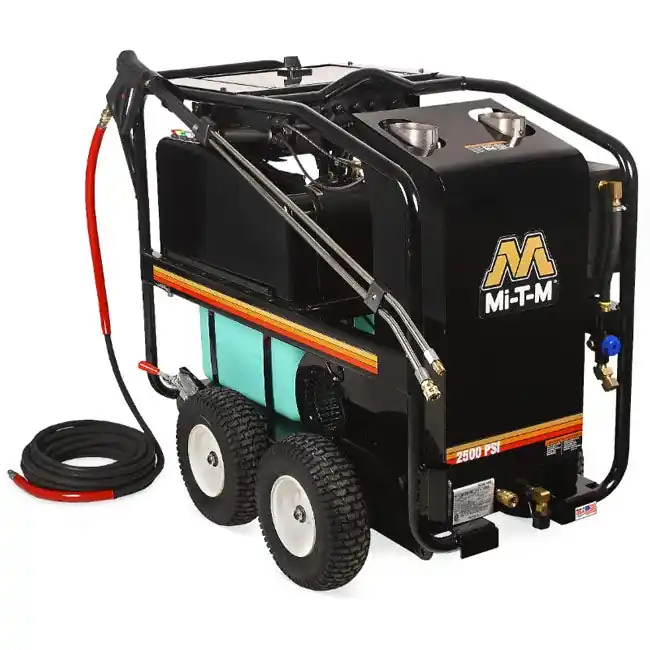

Mi-T-M HSE-2504-0M30 – HSE Series Electric Belt Drive Pressure Washer

MODEL: HSE-2504-0M30

HSE-2504-0M30

Contractors rely on the HSE Series for its efficiency, reliability and longevity. It is heavy-duty and is great for melting away greasy residue and debris on industrial and commercial worksites.

Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · Thermal relief valve · High pressure detergent injector

Motor
Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord

Frame
Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires

Components
Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Optional Accessoriess (Not Included)

HX-0070 Auto Start/Stop – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

HX-0071 Auto Start/Stop – Steam – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F

HX-0074 Auto Start/Stop – CAD Cell – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Monitors burner for proper ignition

HX-0075 Auto Start/Stop – Steam – CAD Cell – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; Monitors burner for proper ignition

HX-0085 460V on 6.0 HP, 3 Phase MODEL:s – Upgrades 230V, 3-phase MODEL:s to operate at 460V, 3-phase

HX-0088 Skid Feet – Stationary applications

HX-0161 Hour Meter – Displays the number of hours unit has been in operation

HX-0294 Adjustable Thermostat – Operator is able to adjust outlet water temperature between 86°-248°F

Specifications

PSI: 2500

GPM: 3.2

Horsepower/Motor: 6.0 HP, 230-460V, 3Ø, 17.3A

Pump: General

Plug Type: NEMA L15-20P

Burner Fuel Tank Capacity: 10.0 gallon

Burner Fuel Cons.: 2.10 gph

BTU Per Hour: 294,000

Net Weight: 558.00 lbs.

Shipping Weight: 688.00 lbs.

Length: 49.50 in.

Width: 28.00 in.

Height: 40.50 in.
